Product Overview

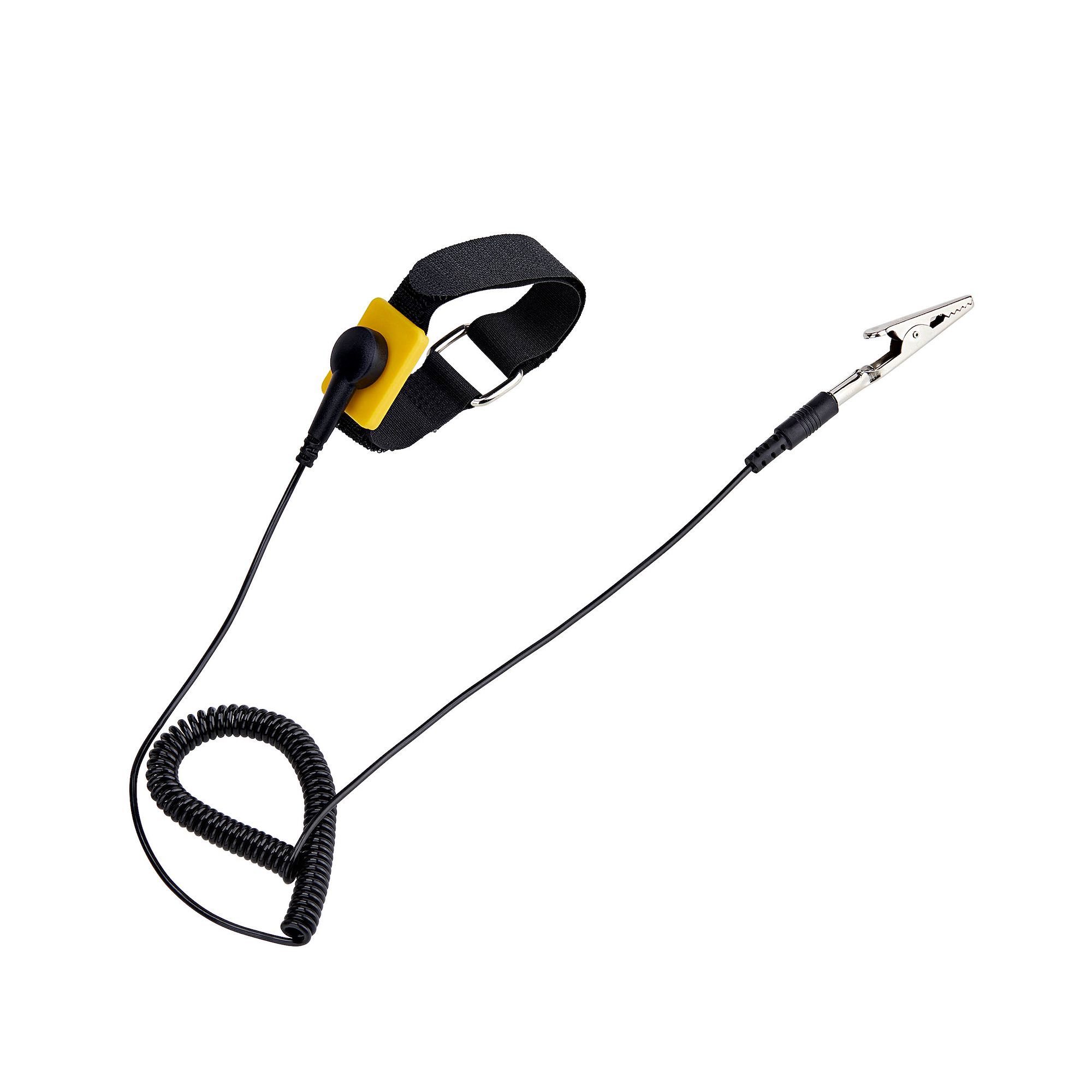

The ESD wrist strap is the most fundamental and widely used tool for personal ESD grounding. It creates a reliable low-impedance path from the operator's skin, through the wrist strap and coiled cord (with built-in 1 MΩ protection resistor), to the common point ground. The 1 MΩ resistor is a critical safety feature — it limits current to safe levels in the event of accidental contact with hazardous voltages while still providing effective ESD dissipation.
Propack supplies wrist straps in a wide range of styles: adjustable metal band, elastic fabric band, and slim profile. Coiled cords are available in 4-ft, 6-ft, and 10-ft extended lengths for bench-mounted and standing operator positions. We also supply dual-wire wrist straps for continuous monitoring systems and common-point ground blocks for shared workstation grounding.
Key Features
1 MΩ Safety Resistor
Built into the coiled cord — limits leakage current to safe level (<250 µA at 250 V) while providing path resistance within ANSI/ESD S20.20 specification.
Three Band Styles
Metal adjustable band (durable, reusable), elastic fabric band (comfortable for long shifts), and slim profile conductive silicone (chemical-resistant environments).
Multiple Cord Lengths
4-ft (1.2 m), 6-ft (1.8 m), and 10-ft (3 m) coiled cords. Extended length options for standing workstations and production line operators.
Dual-Wire Option
Dual-conductor straps for continuous wrist strap monitoring systems — provides real-time open/short detection with visible/audible alarm when continuity fails.
Universal Connections
Standard 4 mm banana plug ground connection. Compatible with all common-point ground blocks and ESD bench monitors. Snap connectors also available.
Colour-Coded Sets
Department- and shift-coded colour schemes available for large facilities. Helps supervisors quickly verify correct strap issuance and daily testing compliance.
Technical Specifications
| Total System Resistance | 750 kΩ – 35 MΩ (per ANSI/ESD S1.1) |
|---|---|
| Series Resistor | 1 MΩ ±10% (safety current-limiting) |
| Wrist Band Resistance | < 10 Ω (metal band); < 750 kΩ (fabric band) |
| Cord Type | Coiled 2-conductor (dual-wire) or single conductor |
| Cord Lengths | 1.2 m, 1.8 m, 3 m (extended) coiled |
| Plug Connection | 4 mm banana plug (standard); 10 mm snap (optional) |
| Band Sizes | Adjustable, fits 130–240 mm wrist circumference |
| Operating Voltage (max) | 250 V AC (with 1 MΩ resistor protection) |
| Test Standard | ANSI/ESD S1.1, IEC 61340-5-1 |
| Testing | Daily test at entry control station or wrist strap tester required |
