Product Overview

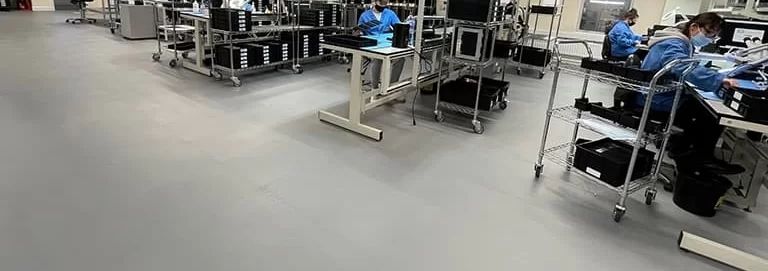

Propack ESD PVC Tiles and Anti-Static Mats offer a flexible, cost-effective solution for electrostatic discharge protection in electronics manufacturing and sensitive assembly environments. Unlike permanently installed flooring systems, our tiles and mats can be deployed quickly, reconfigured easily, and moved as facility layouts evolve.
Available in interlocking tile format for permanent floor coverage and roll/sheet mat format for workbenches and individual workstation protection, our ESD mats meet ANSI/ESD S20.20 and IEC 61340 compliance requirements. All products are supplied with grounding snaps and coiled ground cords for immediate deployment.
Key Features & Benefits
Interlocking Tile System
Tool-free snap-lock installation. Tiles interlock without adhesives, allowing easy removal, replacement of damaged tiles, and layout changes.
Two-Layer Construction
Conductive inner layer plus dissipative outer surface ensures proper charge dissipation without excess conductivity that could damage sensitive components.
Anti-Fatigue Option
Ergonomic anti-fatigue ESD mats reduce operator fatigue during prolonged standing at assembly workstations without sacrificing ESD performance.
Custom Sizes Available
Standard sizes plus custom-cut options for irregular workstation shapes, corners, and specific machine footprints. Supplied with bevel edge trim.
Chemical & Solvent Resistant
Withstands exposure to isopropyl alcohol, flux removers, PCB cleaning agents, and common electronic manufacturing solvents.
Grounding Kit Included
Every mat/tile set includes coiled grounding cord, common-point ground snaps, and connection hardware for rapid, reliable grounding.
Technical Specifications
| Surface Resistivity | 106 – 109 Ω (two-layer dissipative) |
|---|---|
| Top Layer Thickness | 2 mm (mat) / 3 mm (floor tile) |
| Total Thickness | 3.5 mm (mat) / 9.5 mm (interlocking floor tile) |
| Standard Sizes — Mat | 600×900 mm, 900×1200 mm, 600×1200 mm (custom available) |
| Standard Sizes — Floor Tile | 300×300 mm, 450×450 mm, 600×600 mm |
| Color | Grey, Blue, Green (standard); Custom on request |
| Temperature Resistance | Up to 180°C (standard mat); 260°C (high-temp version) |
| Static Decay Time | < 2 seconds at 5 kV per FED-STD-101 Method 4046 |
| Grounding Hardware | Coiled cord 10 MΩ resistor + common point ground snap included |
| Compliance | ANSI/ESD S20.20, IEC 61340-4-1, RoHS |
